PXI (PCI eXtensions for Instrumentation) modules are compact, modular instruments designed for demanding test, measurement, and data acquisition applications. Based on the industry-standard CompactPCI architecture, PXI leverages the PCI bus for high-speed data transfer and synchronization. This modular approach allows users to create custom systems by combining a variety of PXI modules within a single chassis.
PXI Instrumentation
6791 Spread Spectrum Module

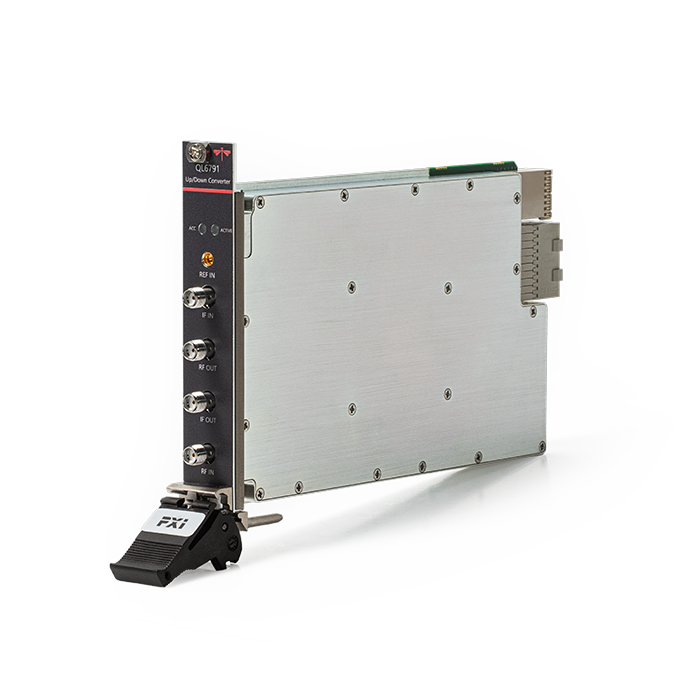

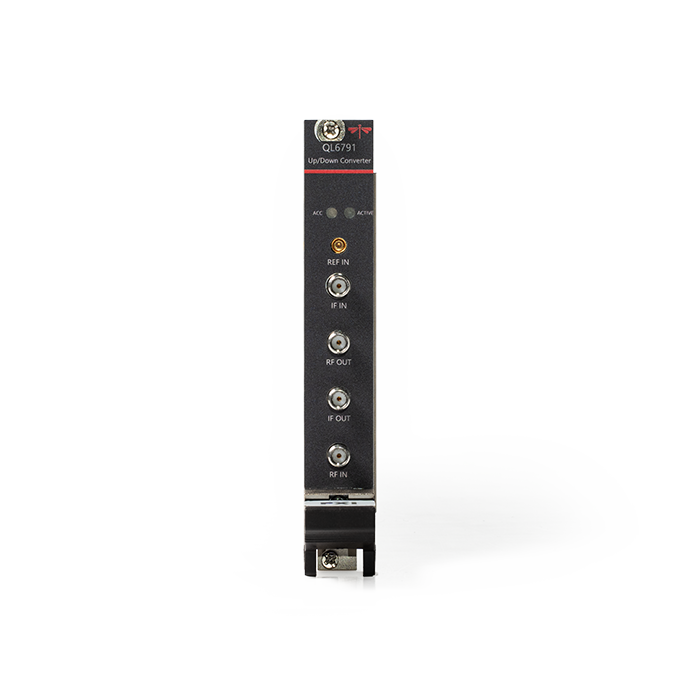

The QL6791 is a single-slot PXIe architecture instrument for frequency extension, featuring strong versatility. The product has both transmit and receive capabilities and is equipped with power and lock status monitoring indicators, which facilitate the monitoring of the product's status. It can be widely used for frequency extension.
Supports bypass output
Capable of frequency conversion for RF signals
Can perform down-conversion preprocessing on harmonic components of signals
Supports external reference synchronization
Allows basic parameter configuration and status monitoring via companion software
Preview
Preview
Main Features
Technical Specifications
Physical Characteristics
Environmental Adaptability
Model Selection and Configuration
