PXI (PCI eXtensions for Instrumentation) modules are compact, modular instruments designed for demanding test, measurement, and data acquisition applications. Based on the industry-standard CompactPCI architecture, PXI leverages the PCI bus for high-speed data transfer and synchronization. This modular approach allows users to create custom systems by combining a variety of PXI modules within a single chassis.
PXI Instrumentation

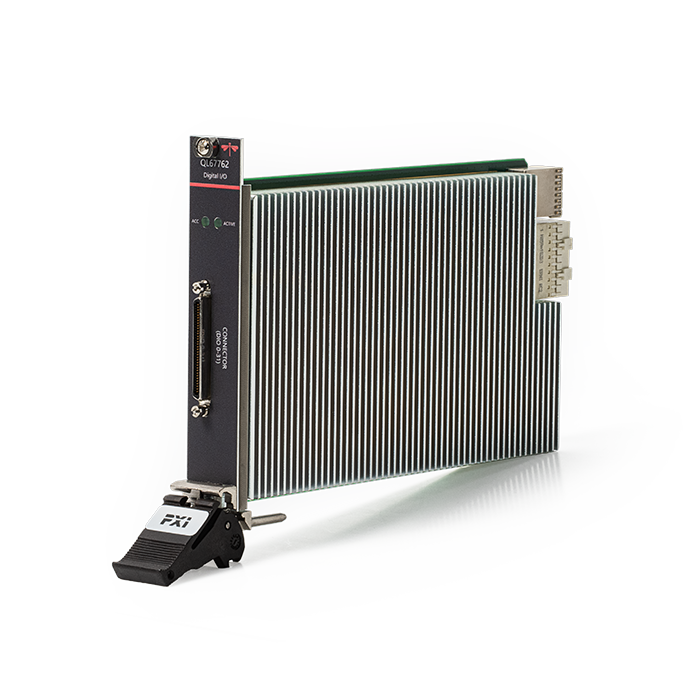

67762 32-channel High Speed DIO
QL67762 adopts a standard 3U single-slot PXIe architecture, with a front panel providing 32 DIO channels supporting multiple logic level standards, making it widely applicable for various timing control scenarios requiring high-speed digital input/output.
32-channel high-speed DIO channels
Supports 1.8V/2.5V/3.3V/5V/2.5V~5V arbitrary logic levels
Up to 50Mbps
Supports timing control and protocol simulation
Preview
Preview
Main Features
Technical Specifications
Physical Characteristics
Environmental Adaptability
Model Selection and Configuration
