PXI (PCI eXtensions for Instrumentation) modules are compact, modular instruments designed for demanding test, measurement, and data acquisition applications. Based on the industry-standard CompactPCI architecture, PXI leverages the PCI bus for high-speed data transfer and synchronization. This modular approach allows users to create custom systems by combining a variety of PXI modules within a single chassis.
PXI Instrumentation
67802 1-channel Source Measurement Unit (SMU)

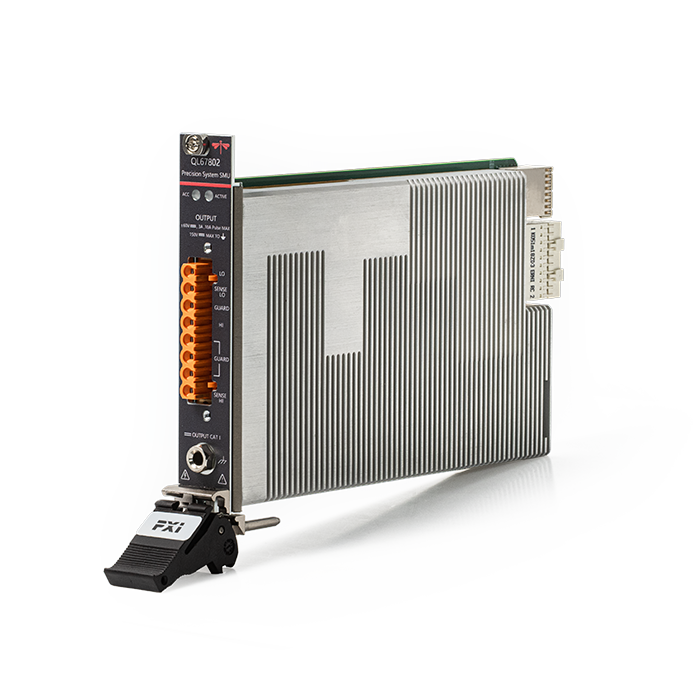

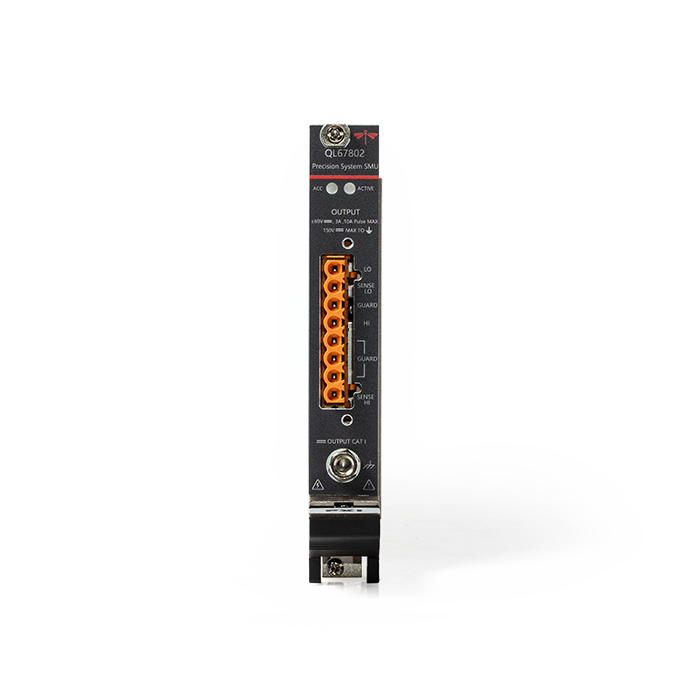

QL67802 is a single-channel PXIe source measure unit (SMU) with four-quadrant operation capability. It can provide up to 40W, ±60V, ±3A DC power and ±10A pulses, and can simultaneously source and sink current to supply power to external devices. It is widely applicable for manufacturing testing of integrated circuit devices and discrete components, board-level testing, and laboratory characterization analysis.
±60V/±3A DC source measurement unit
0.02% voltage accuracy and 0.03% current accuracy
Single point source, sequence, and scanning source measurement modes
Clamp pressure, clamp flow, software fail safe, logic protection, hardware overcurrent, health management
Digital feedback adjustment technology for flexible adjustment of testing system parameters
