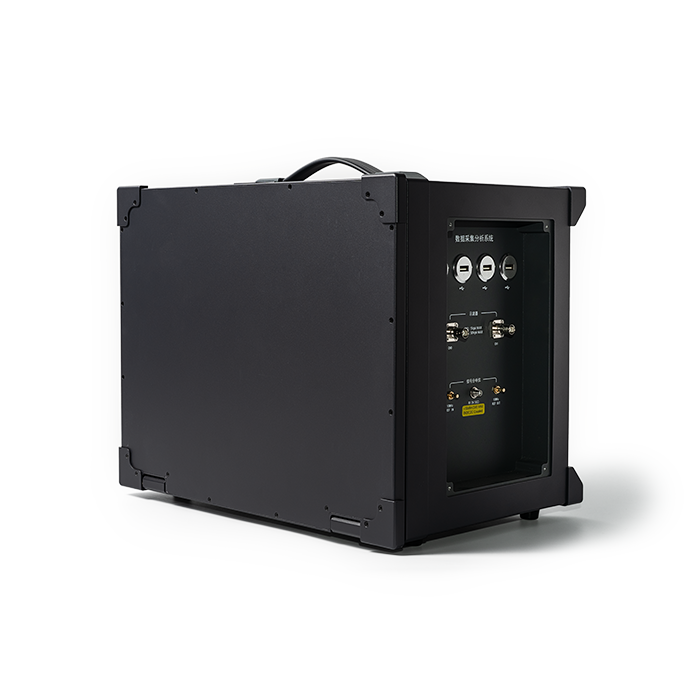

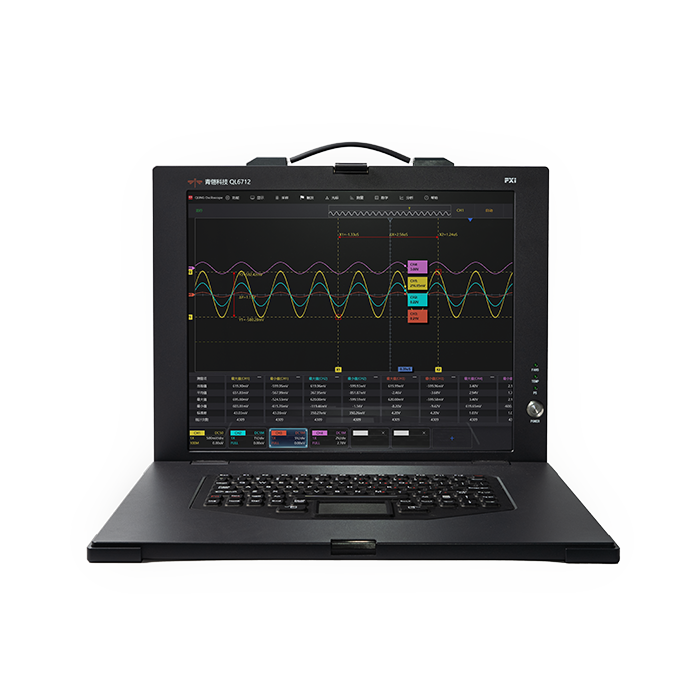

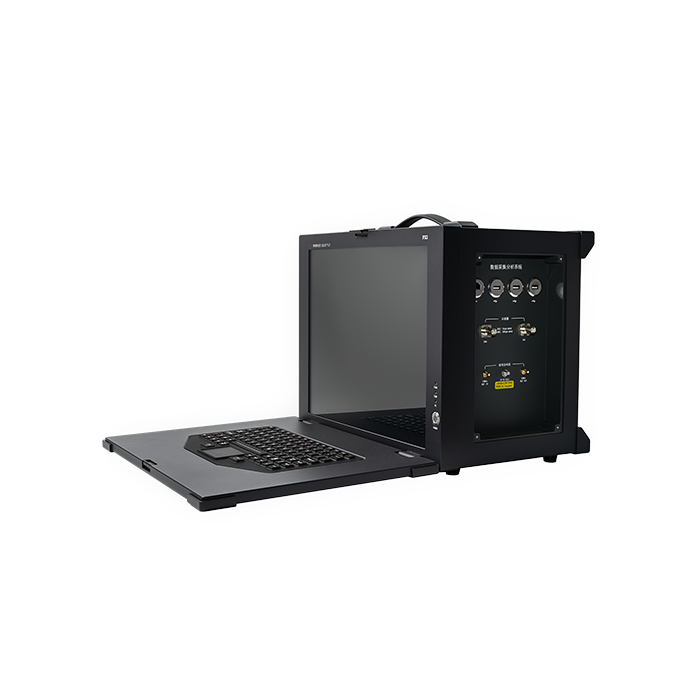

QL6712 is a flexible configuration platform based on the PXIe architecture, featuring PXIe bus controller types, high-definition industrial displays, and robust portable measurement and control capabilities. It adopts professional industrial design and ruggedization, integrating a 17-inch high-definition industrial display, an industrial touchpad, a waterproof keyboard, and a measurement and control power supply. The system boasts high integration, robustness, and portability, making it suitable for various harsh indoor and outdoor environments or complex conditions where testing equipment needs to be mobile. It is applicable to all kinds of measurement and control systems.

• Basic specifications: 3U architecture in compliance with PXIe standard

• 8 slots: 1 system slot and 7 hybrid slots

• Fan control mode: manual adjustment or automatic operation according to the chassis temperature

• Single channel link bandwidth: Slot 2~4: theoretical bandwidth 4 GB/s Gen 3.0x4; Slot 5~8: theoretical bandwidth 2 GB/s Gen 2.0x4

• Display screen, keyboard: HD industrial display, resolution 1280×1024, brightness 400 Nits; Capacitive touch screen; water proof keyboard
