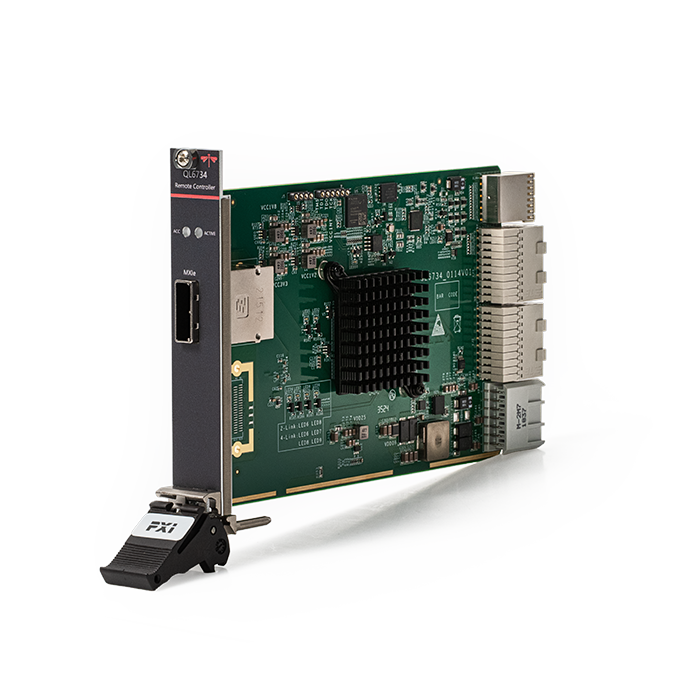

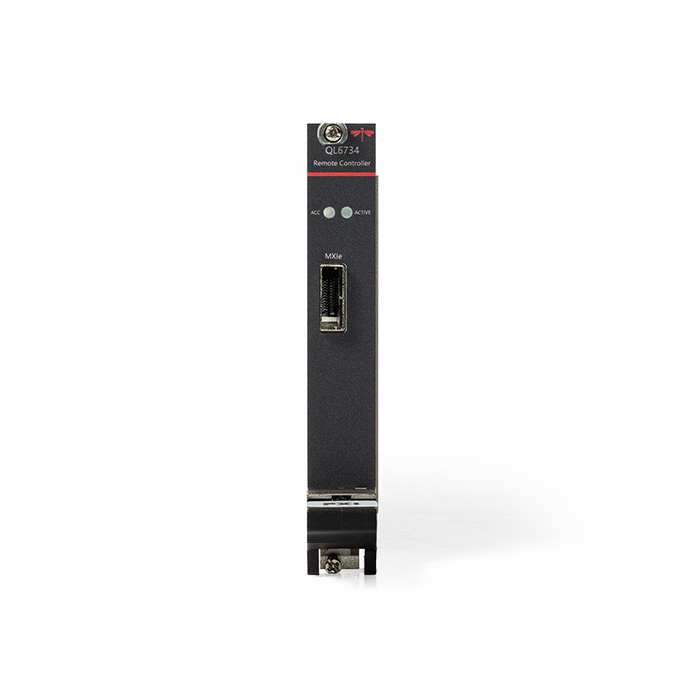

6734 PXle Remote Controller
QL6734 is a remote controller based on the PXIe architecture, with a system bandwidth of 1GB/s. It embeds a high-performance PCIe switch chip, enabling fully transparent control of PXI Express and CompactPCI Express systems from a PC. The module is installed in a PXI chassis and connected to the host PC via MXI-Express copper cables. It is suitable for processing-intensive, modular instrumentation, and data acquisition applications.
Basic Specifications : Standard PXIe 3-slot width, 3U height.
Data Bandwidth : Maximum system bandwidth: 1GB/s.
Link Configuration : Automatically configures PCIe 2.0 4x4 or 2x8 links based on the chassis.
Supported Interfaces : Supports MXIe interface.
Preview
Preview
Main Features
Technical Specifications
Physical Characteristics
Environmental Adaptability
Model Selection and Configuration
