PXI (PCI eXtensions for Instrumentation) modules are compact, modular instruments designed for demanding test, measurement, and data acquisition applications. Based on the industry-standard CompactPCI architecture, PXI leverages the PCI bus for high-speed data transfer and synchronization. This modular approach allows users to create custom systems by combining a variety of PXI modules within a single chassis.
PXI Instrumentation

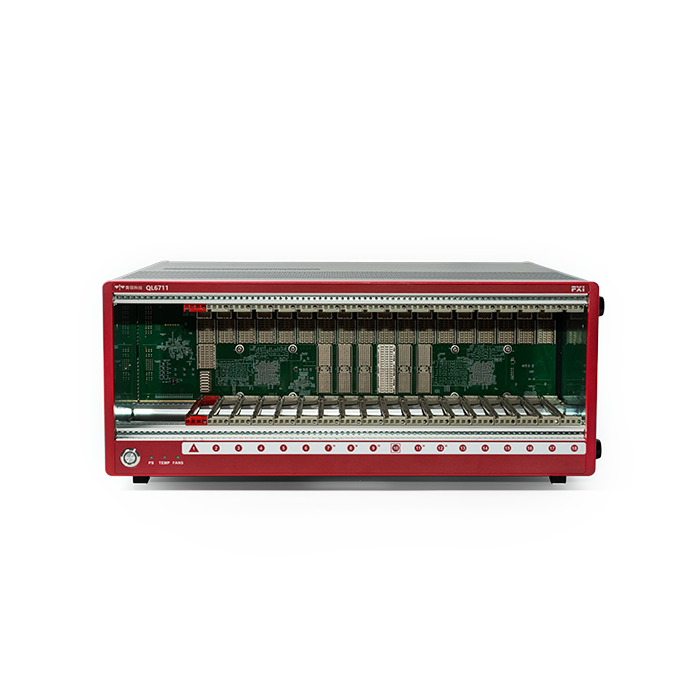

6711 18-slot Chassis

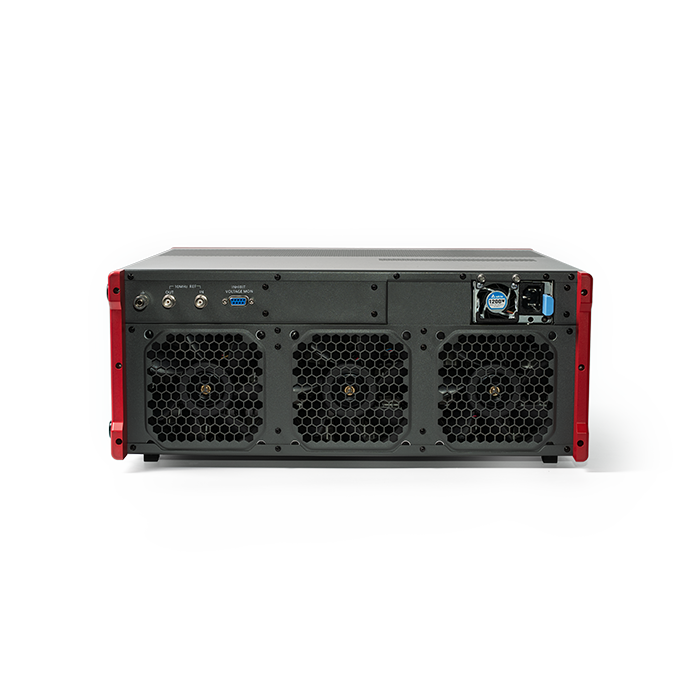

QL6711 is a PXIe architecture chassis hardware platform. The platform's electrical, interface, and structural aspects all comply with the PXIe standard, offering the option to select different controllers to meet various interface requirements. The backplane provides a high-speed bus switching network, supporting up to 24GB/s system bandwidth and up to 8GB/s independent bandwidth per slot. It also features a 10MHz reference clock input/output interface (BNC interface), fan speed control switches, and other components, making it suitable for various measurement and control systems.
Basic specifications: 3U architecture in compliance with PXIe standard
System slot link configuration: x8 + x16
Fan control mode: manual adjustment or automatic operation according to the chassis temperature
Single slot link bandwidth: PCle 3.0 x 8, effective bandwidth ≥6GB/s
18 slots: 1 system slot, 1 clock slot, 5 hybrid slots, and 11 type2 slots
Preview
Preview
Main Features
Technical Specifications
Physical Characteristics
Environmental Adaptability
Model Selection and Configuration
